Features

Suitable for applying to heavy current products such as high-power motors, pumps, and

transformers.

Electrical Specifications

10-16A

20A-50A

Scope of Application

Submersible pumps, various AC and DC solar water heaters with high-power motors, heating pipes, electric tools, battery packs, etc.

Features

Pure temperature control design, low current effect;

Epoxy seal to ensure vacuum impregnating varnish;

The fully enclosed structure protects components from dirt or impurities and damages from external forces;

Temperature is pre-set before shipment for a single temperature range control;

The housing has overcurrent protection and can be used by adding insulating sleeves to the outside.

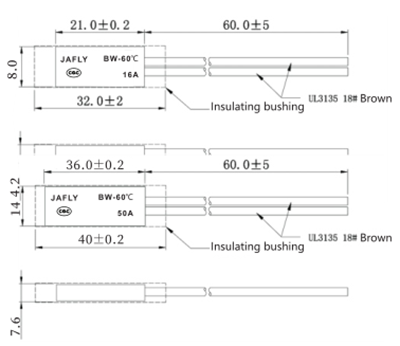

Identifications Description

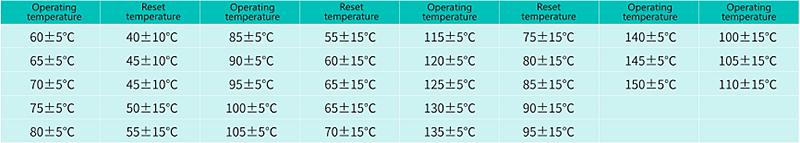

CommonTemperature Specifications Table

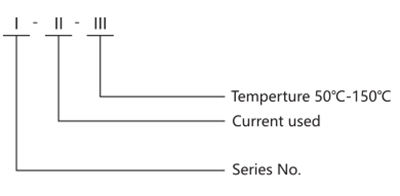

Model^pecification numbering method

Customized specification is acceptable
