Principle Features

TB02 series thermal protector is small in size, sensitive to temperature, precise and reliable in protection, which is especially suitable, for the safety protection sake, for temperature-sensitive cables, battery protection boards, micro-motors, and transformers.

Features

Small size, more flexible and convenient installation;

Highly sensitive to temperature, fast action;

Flexible choice of connecting wires and lenses: especially suitable, for the safety protection sake, for temperature-sensitive cables, battery protection boards, micro-motors and transformers;

Each component strictly complies with European RoHS for environmental standards;

The product series consists of normally closed B types and normally open K types.

Electrical Specifications

2.5A/250VAC

5A/120VAC

10A/12VAC

5A/24VAC

Technica[Parameters

Operating Temperature: 60°C-150°C, every 5 Celsius range for one shift. Any temperature range within the operating one can be realized according to customer's requirements. Temperature Tolerance: ±3°C, ±5°C.

Scope of Application

Rechargeable battery pack, lithium battery protection board: curtain motor; tubular motor; electric motor; electric tools, etc.

PC circuit board, temperature sensing cable: heating pad, medical pad, electric blanket, electric heating suit, fluorescent lamp ballast, transformer; etc.

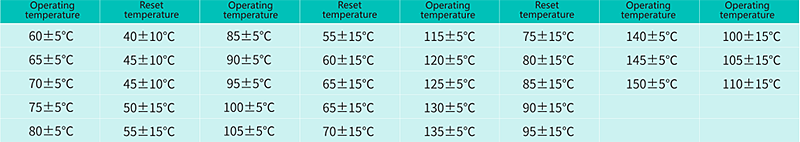

CommonTemperature Specifications Table

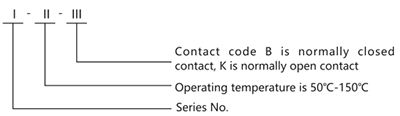

IdentificationsDescription
